** Discover the beauty of automated flow cytometry (동영상 아래 링크 클릭!!)

Biomedical research | videos, webinars and helpful tutorials | 대한민국 (miltenyibiotec.com)

▣ Key Features

• Counting beads 없이 Absolute cell counting 가능
• Auto-compensation/Auto-labeling
• Pre-enrichment 기능으로 rare cells 의 효과적인 분석
• 낮은 sample carryover, 교차 오염 최소화
• Flow logic 분석 프로그램 제공
• MACSQuant Live Support 로 전문가의 실시간 지원
• Cell manufacturing QC에 적합한 소프트웨어 (express mode 지원, 21 CFR Part 11 제공)

▣ MACSQuant Key Applications

• Rare cell analysis
• MACSPlex Cytokine Assay
• MACSPlex Exosome Assay
• Cytokine Secretion Assay
• Immunophenotyping Assay
• MACS Marker Screening

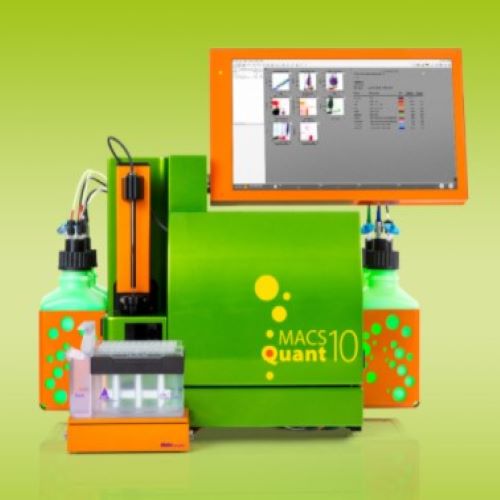

▣ MACSQuant® Analyzer 10

Your Trusted partner in automated Flow-Cytometry

• 10 parameters : FSC/SSC, 8 fluorescence channels
• Automation : washing, calibration and labeling 전 과정 자동화
• Reliability: sample volume, 높은 분석의 정확도, 낮은 carryover (0.01%)
• Pre-enrichment 기능으로 rare cell 분석 가능
• Absolute cell counting 가능 (Without counting beads)
• Laser : Blue(488nm), Violet(405nm), Red(640nm)

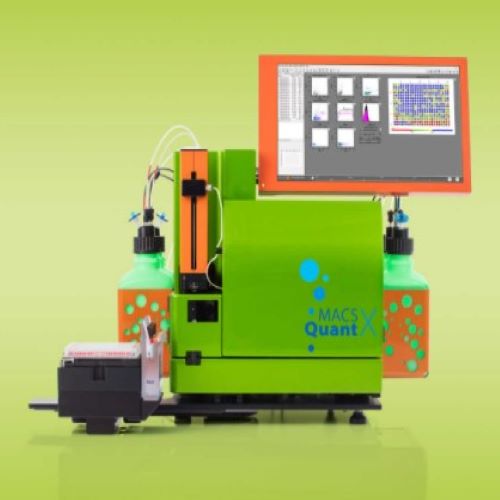

▣ MACSQuant® X

Reliable high-throughput Flow-Cytometry

• 10 parameters : FSC/SSC, 8 fluorescence channels
• Express speed : 96 well plate 15분, 384 well plate 60분
• Flexibility : 384 well, 96 well plates, 5ml tubes, single tubs 모두 사용가능
• Mixing : orbital shaker, vibration needle 선택 가능
• Automation : washing, calibration and labeling 전 과정 자동화
• Reliability : sample volume, 개수와 상관없이 높은 분석의 정확도, 낮은 carryover (0.01%)
• Absolute cell counting 가능 (Without counting beads)
• 최소 5ul sample uptake 만으로도 일관성 있는 data 도출
• Laser : Blue(488nm), Violet(405nm), Red(640nm)

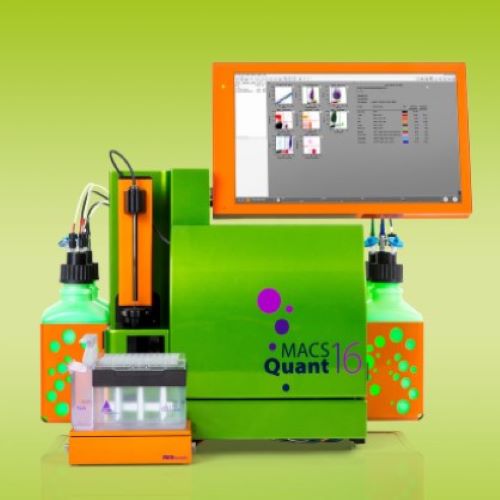

▣ MACSQuant® Analyzer 16

More colors, more applications

• 확장된 형광 채널 : FSC/SSC 포함 최대 16개 parameter 분석 가능
• Violet side scatter : Nano particle analysis Smart gain technology : 재현성 높은 결과 도출
  (User to User, Test to Test, Instrument to Instrument, across sites)
• Automation : washing, calibration and labeling 전 과정 자동화
• Reliability : sample volume, 높은 분석의 정확도, 낮은 carryover (0.01%)
• Absolute cell counting 가능 (Without counting beads)
• Laser : Blue(488nm), Violet(405nm), Red(640nm)

▣ MACSQuant® VYB

Your benchmark for fluorescent protein Flow-Cytometry

• 10 parameter : FSC/SSC, 8 fluorescence channels Yellow laser 장착
 - PE와 PE tandem dyes의 최적화된 excitation
 - APC와 APC tandem dyes Excite와 analyze
• FITC/GFP, PE의 최소 보정 가능
• Automation : washing, calibration and labeling 전 과정 자동화
• Reliability : sample volume, 높은 분석의 정확도, 낮은 carryover (0.01%)
• Absolute cell counting 가능 (Without counting beads)
• Laser : Blue(488nm), Violet(405nm), Yellow(561nm)
